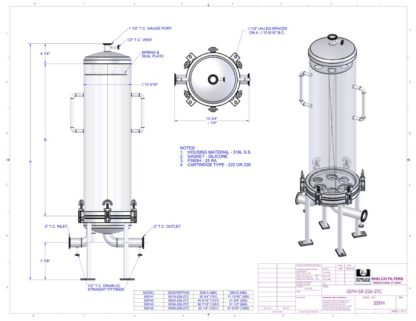

Description The 5SFH2-C226-2TC25-11S Swing bolt T style sanitary housings are designed for critical applications requiring high purity and durability. This housing accepts a 10” filter cartridge with a 226 end cap configuration. 1.5” tri-clamp connections on the inlet and outlet. All wetted parts are 316L Stainless steel electro-polished with standard 25RA internal finish and 32RA external finish. Maximum operating pressure 150 psig (10.3 bar) @ 225F (107C) Gasket material Silicone Swing-bolt closure ½” TC ferrule vent & drain 1 ½” gauge port Specification sheet (link to SFH Series Cartridge housing.pdf) Example drawing (link to 1SFH-226-1TC.pdf)
